g2 g2 is an easy to use, portable and powerful 2D graphics library. It provides a comprehensive set of functions for simultaneous generation of graphical output on different types of devices. Following devices are currently supported: PostScript, X11, GIF (using gd) and Win32 (xfig is in development). g2 is written in C (ANSI) and additionally has a Fortran and perl interface. A simple example: C Fortran perl d=g2_open_X11(50,50); g2_line(d,5,5,45,45); g2_circle(d,25,25,20); d=g2_open_X11(50.0,50.0) call g2_line(d,5.0,5.0,45.0,45.0) call g2_circle(d,25.0,25.0,20.0) $d=new X11G2::Device(50,50); $d->line(5,5,45,45); $d->circle(25,25,20);

Current Version:   0.40 License Type:   GPL

Home Site: http://g2.sourceforge.net/ Source Code Availability:   Yes Available Binary Packages: Debian Package:   Yes, http://www.debian.org/distrib/packages RedHat RPM Package:   Yes, ftp://contrib.redhat.com/libc6/i386/ Other Packages:   ?? Targeted Platforms: Linux, AIX, Digital Unix, VMS, WindowsNT Software/Hardware Requirements: C Compiler, gd library for GIF output

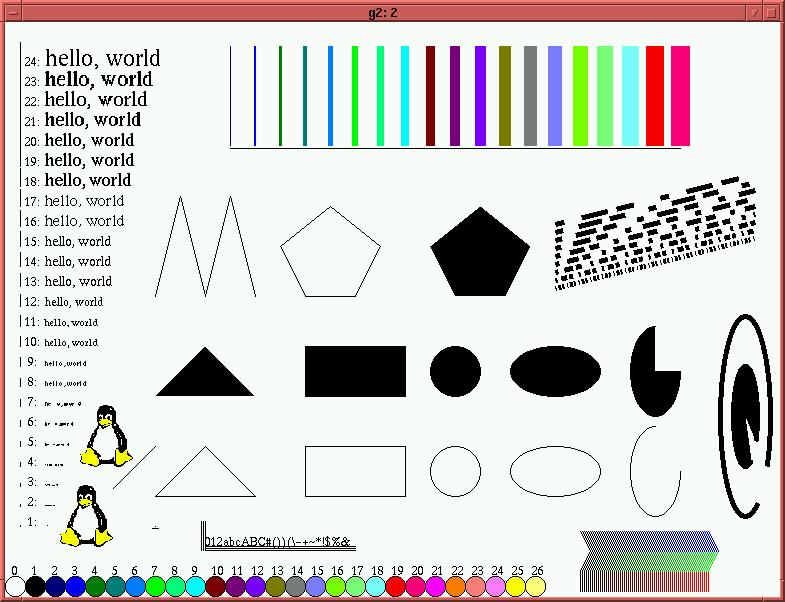

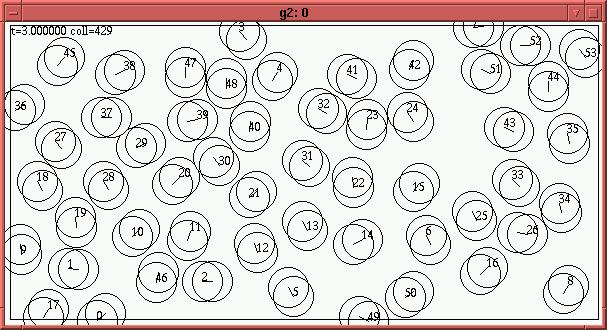

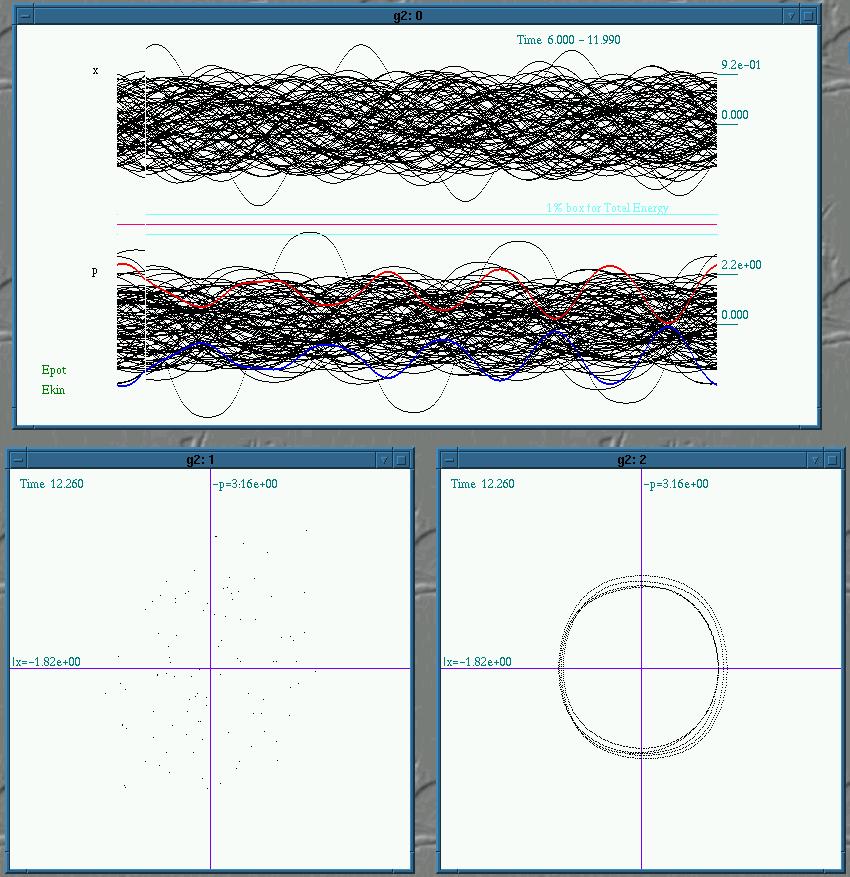

Other Links: http://metalab.unc.edu/pub/Linux/libs/graphics/ Mailing Lists/USENET News Groups: None User Comments: None See A Screen Shot? g2 test window Using g2 in molecular dynamic simulation g2 in action (simulation of a 1D gravitational field)
